UTP CABLE CAT6 INDOOR

Cat6 UTP indoor network cable provides significantly higher performance than Cat5e, offering data transfer speeds up to 10 Gbps over short distances (up to 55 meters) and a full 1 Gbps up to 100 meters. It operates at a bandwidth of 250 MHz, which reduces data bottlenecks and latency for demanding tasks like 4K streaming, gaming, and heavy file transfers.

Key Technical Differences

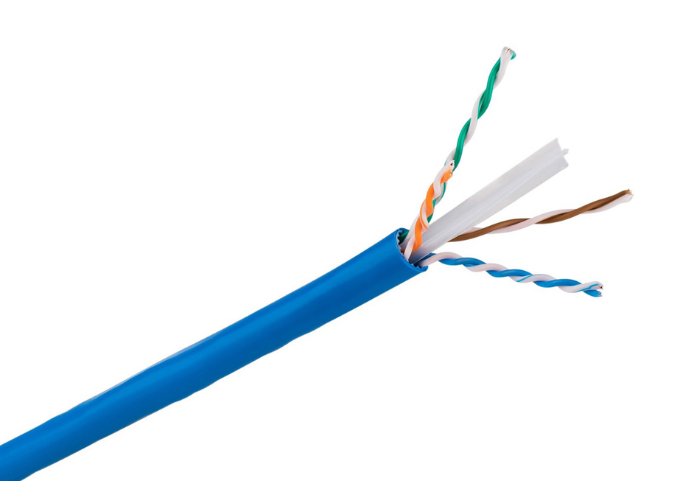

• The Internal Spline: Unlike Cat5e, standard Cat6 indoor cable features a physical plastic cross-separator (spline) inside the jacket. This permanently separates the four pairs of twisted wires to drastically eliminate crosstalk and interference.
• Thicker Conductors: It generally uses thicker 23 AWG or 24 AWG wires compared to the 26 AWG wires commonly used in budget Cat5e patch cables.
• Indoor PVC Jacket: The outer layer is made of standard flexible PVC (Polyvinyl Chloride) or FR-LSZH (Flame Retardant Low Smoke Zero Halogen). It is built for internal wall routing, conduits, and patch setups but lacks the double-shielded water-resistant PE coating required for outdoor layouts.
