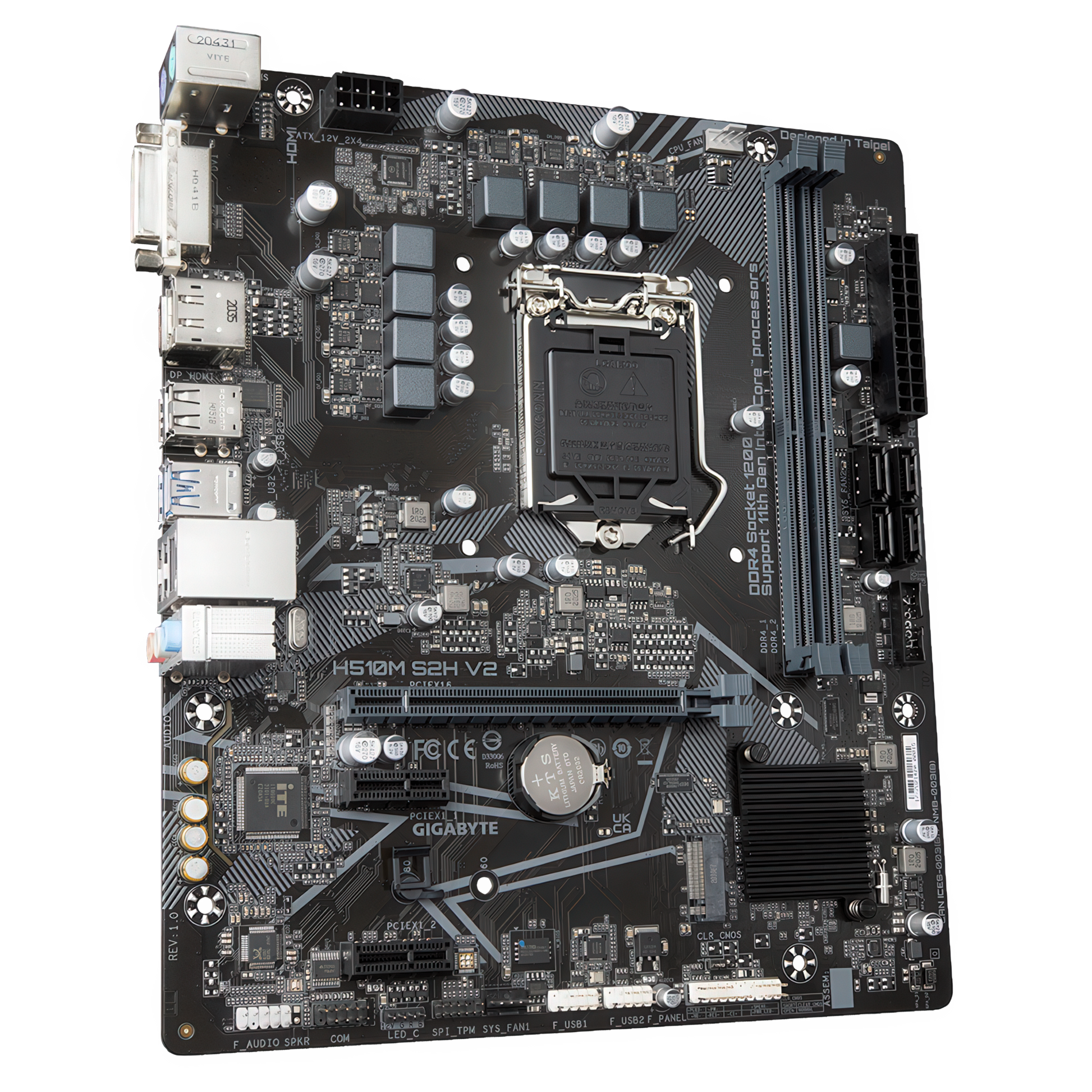

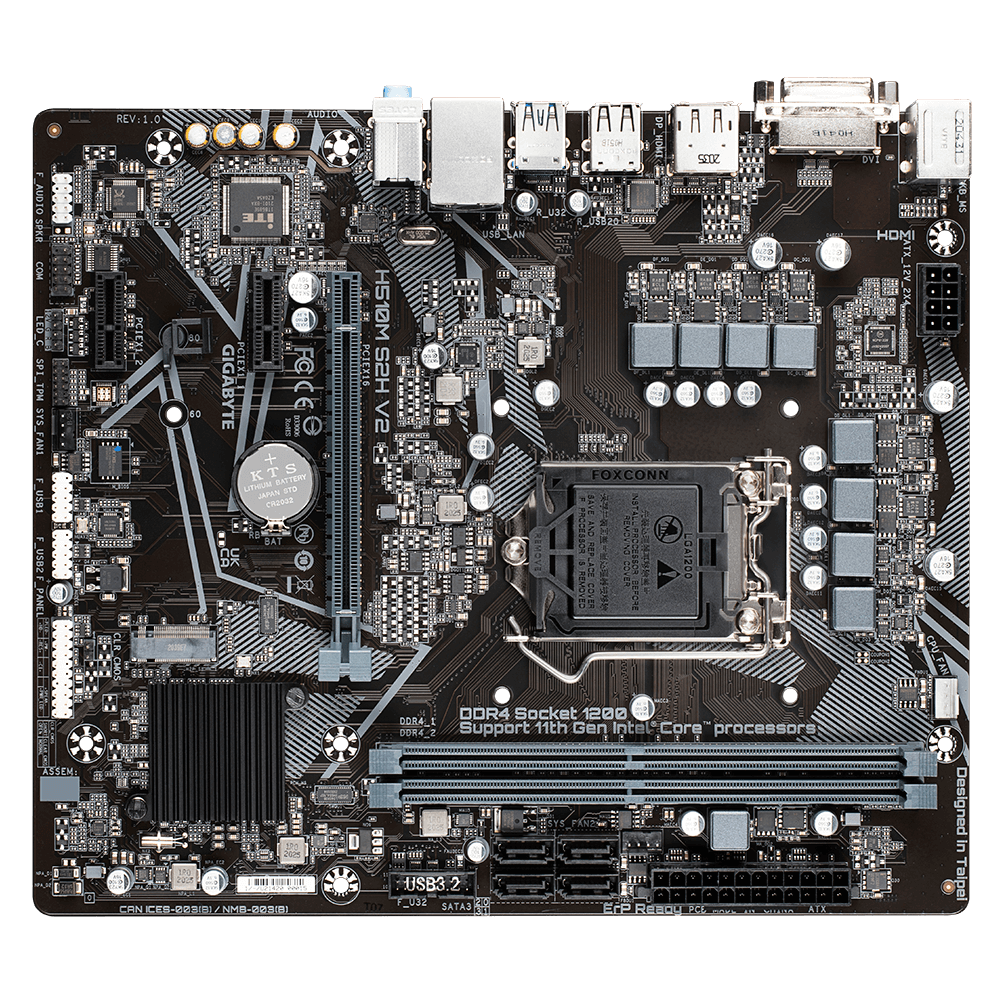

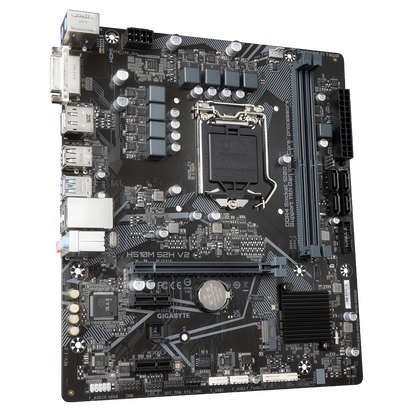

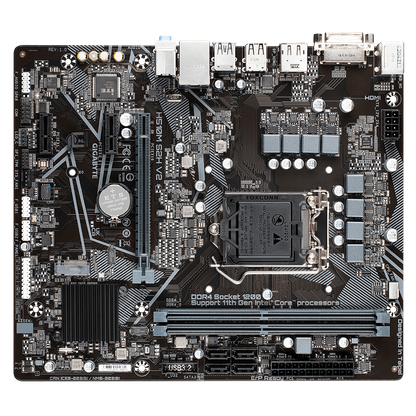

GIGABYTE H510M S2H V2 Micro-ATX Motherboar

Micro-ATX motherboard built for Intel LGA1200 processors. The GIGABYTE H510M S2H V2 supports 11th and 10th Gen Intel Core processors and includes practical features for desktop builds such as DDR4 memory support, PCIe 4.0-ready design, M.2 storage, Gaming GbE LAN, and three display outputs.

Key Features

• Supports 11th and 10th Gen Intel Core series processors.

• Dual-channel non-ECC unbuffered DDR4 memory, 2 DIMM slots.

• Ultra-fast M.2 with PCIe Gen3 x4 and SATA interface.

• GIGABYTE 8118 Gaming LAN with bandwidth management.

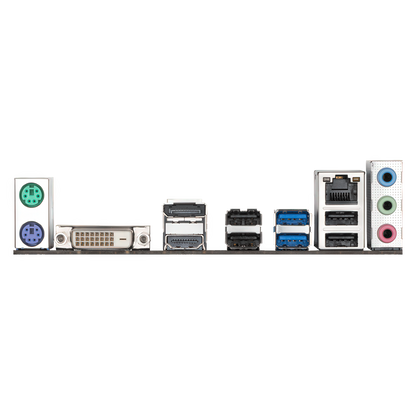

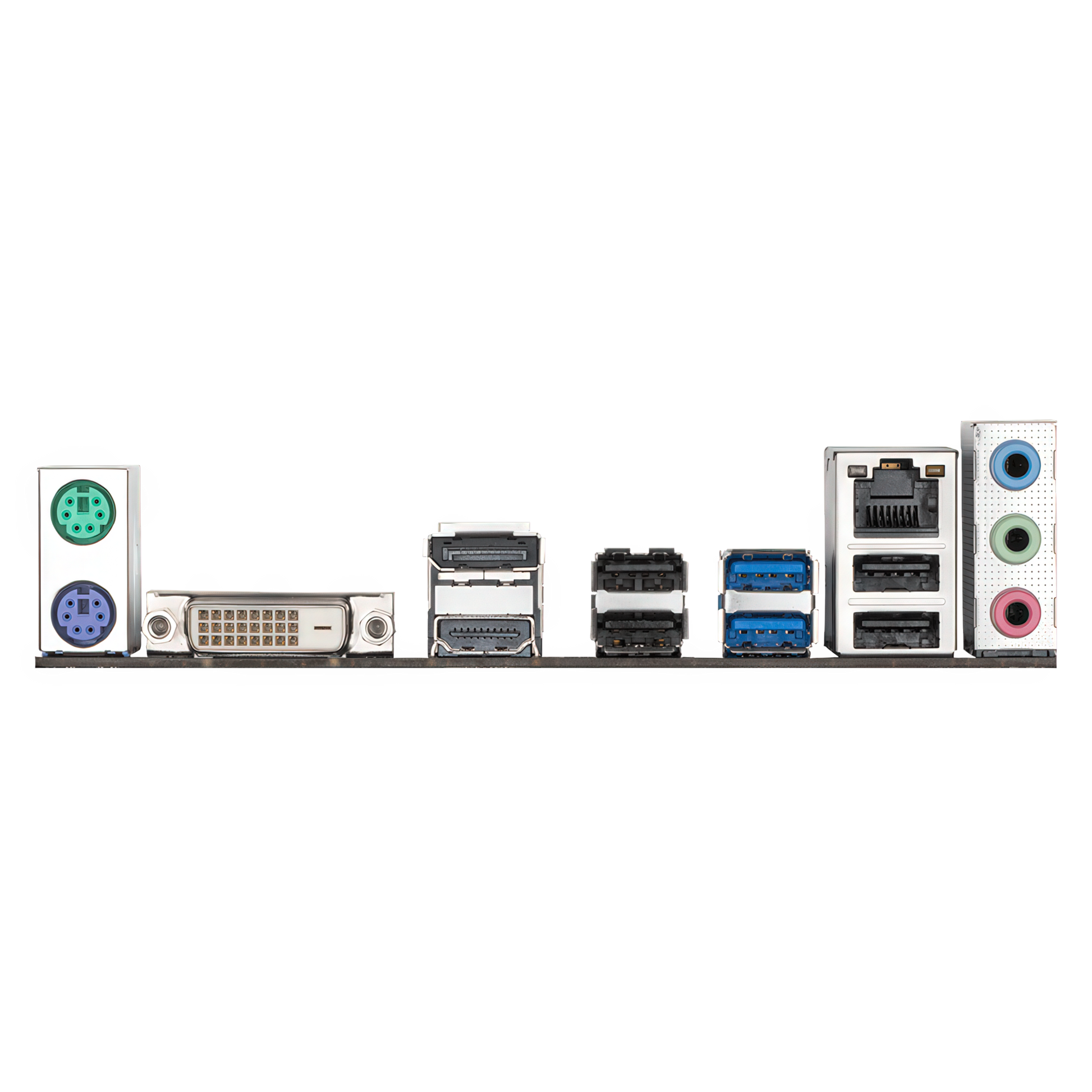

• 3 display interfaces: DVI-D, DisplayPort, and HDMI.

• Smart Fan 6 cooling features.

• 6+2 phases digital VRM and anti-sulfur resistor design.

Specifications

• Brand: GIGABYTE

• Model: H510M S2H V2

• Product Type: Motherboard

• Form Factor: Micro-ATX

• Socket: Intel LGA1200

• Chipset: Intel H510

• CPU Support: 11th and 10th Gen Intel Core series processors

• Memory Support: 2 x DDR4 DIMM, dual-channel, non-ECC unbuffered

• Expansion Slot: 1 x PCIe 4.0 x16 slot

• Storage: 1 x M.2 PCIe Gen3 x4 / SATA interface

• LAN: Realtek 8118 Gaming LAN

• Display Outputs: DVI-D, DisplayPort, HDMI

• Cooling: Smart Fan 6

• Audio: High quality onboard audio with audio capacitors and noise guard
